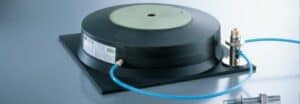

Rubber Air Springs for vibration and shock isolation of machines, equipment and sub-assemblies.
- Bell-shaped component made from high-grade elastomer
- No excessive horizontal deflection
- Overloading or sudden pressure drop has no negative effect
- To reduce vertical amplitude, additional damping is available
- Baseplate is equipped with an anti-slip plate, so no floor anchoring required.
- Stainless steel design available if outdoor installation (i.e. air conditioning units) required
Electronic or Mechanical Level Control and Air Pressure monitor available
FAEBI with Level Control (LCV)
One simple but effective solution is the mechanical-pneumatic control valve, the level of which can be maintained constantly to within +- 1/10mm. Principally 3 control valves are used:
- Pressure Control valve to limit system pressure to maximum 6 bar
- Water Trap to remove vapor
- Air Filter to remove dust and any other foreign body from air supply.
FAEBI-HD with adjustable dampening
This solution is made from a combination of high-grade elastomer and metal, with an amplified sidewall. In order to ensure a high dampening effect, the air space is split into two interlinked chambers: a) Load Volume, and b) Damping Volume. An externally positioned valve allows for simple damping adjustments. The air damping units are wear-resistant and require no maintenance.
